Bloom Filter Terminal Visualizer

A fully functional, terminal-based Bloom Filter implementation in Java. This project serves as a Low-Level Design (LLD) exercise showcasing advanced Object-Oriented principles, core data structure manipulation, and mathematical hashing strategies.

Features

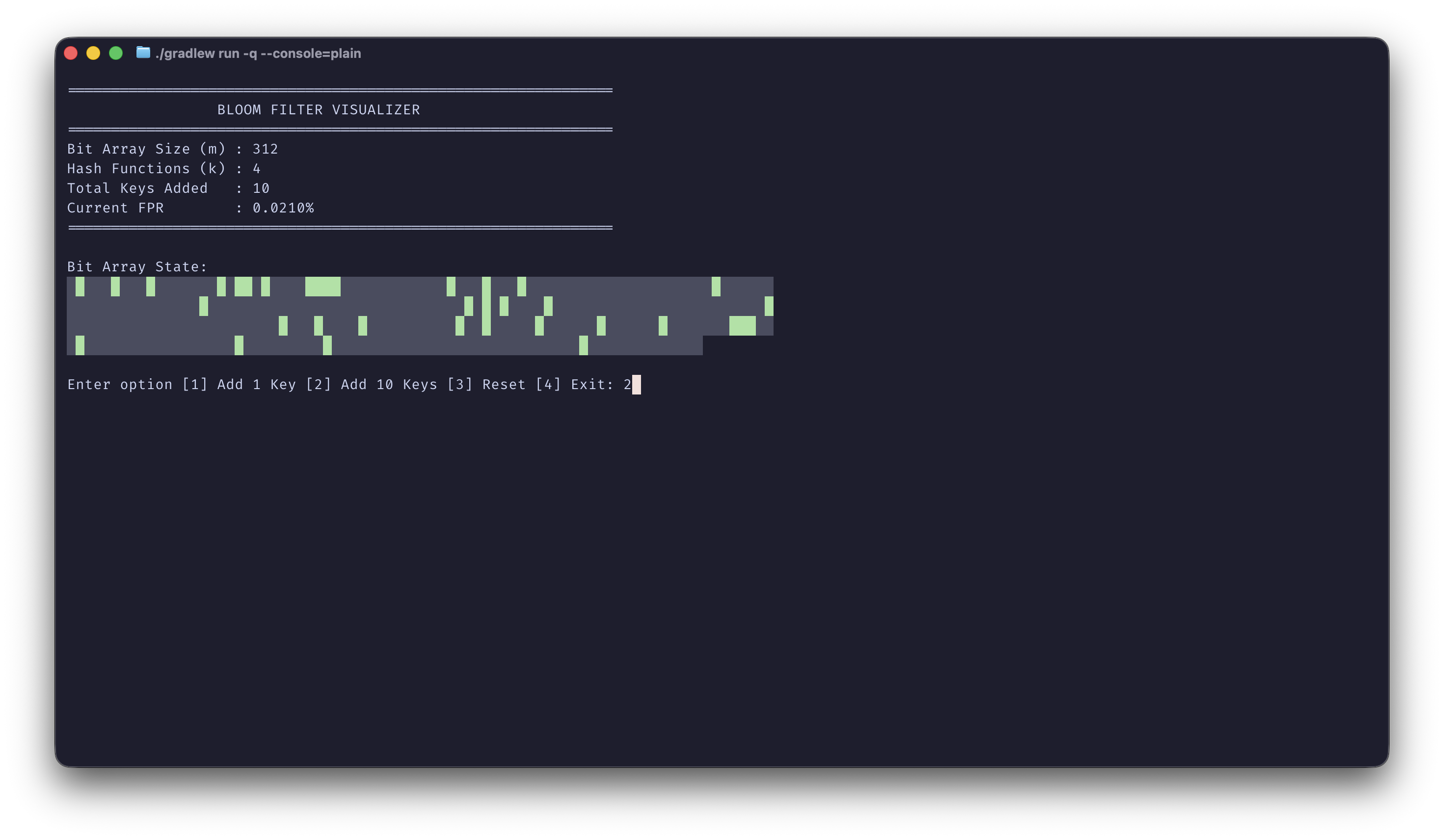

• Interactive Terminal UI: A flicker-free, double-buffered terminal dashboard that visualizes the bit array and the theoretically calculated False Positive Rate (FPR) as elements are added.
• Mathematical Accuracy: Automatically calculates the optimal bit array size ($m$) and the optimal number of hash functions ($k$) based on your expected dataset size ($n$) and target FPR ($p$).
• “Double Hashing” Strategy: Uses a single 128-bit MurmurHash3 algorithm (via Google Guava) separated into two 64-bit numbers to simulate $k$ independent hash functions without bias or severe CPU overhead.
• 100% Generic & Type-Safe: Implements a FunnelStrategy pattern (inspired by Google Guava) allowing the Bloom Filter to store String, Integer, or any complex custom Object without relying on Java’s inadequate Object.hashCode().

Architecture & LLD Highlights

This project avoids monolithic anti-patterns by strictly adhering to the Single Responsibility Principle:

• BloomFilter<T>: The core interface hiding implementation details from the outside world.
• DefaultBloomFilter<T>: The state manager backing the interface with a java.util.BitSet.
• BloomFilterBuilder: Enforces compile-time type safety for generics via Dependency Injection of the Funnel Strategy.
• HashingStrategy & FunnelStrategy: Interfaces that completely decouple the hashing algorithm (Murmur3) and data-to-byte conversion (UTF-8) from the data structure itself.
• BloomFilterConfig: Isolates the mathematical formulas for $m$ and $k$.

Mathematical Formulas Used

Bit Array Size ($m$): $$m = \lceil \frac{-n \ln p}{(\ln 2)^2} \rceil$$

Number of Hash Functions ($k$): $$k = \lfloor \frac{m}{n} \ln 2 \rceil$$

How to Run

This project uses Gradle. You do not need Gradle installed globally to run this project; the Gradle wrapper is included.

1. Navigate to the project directory:

   cd bloom-filter-lld

2. Build the project:

   ./gradlew build

3. Run the interactive terminal visualizer:

   ./gradlew run -q --console=plain

   (Note: The -q --console=plain flags ensure Gradle’s build output doesn’t disrupt the ANSI escape codes used to draw the UI).

System Design Diagrams

Structural Class Diagram

classDiagram
    class BloomFilter~T~ {
        <<interface>>
        +addKey(T key)
        +mightContain(T key) boolean
        +reset()
    }

    class DefaultBloomFilter~T~ {
        -BitSet bitSet
        -int bitArraySize
        -int kHashFunctions
        -int keysAdded
        -HashingStrategy hashingStrategy
        -FunnelStrategy~T~ funnelStrategy
        +addKey(T key)
        +mightContain(T key) boolean
        +getBitSet() BitSet
    }

    class BloomFilterBuilder~T~ {
        -double targetFpr
        -int expectedElements
        -HashingStrategy hashingStrategy
        -FunnelStrategy~T~ funnelStrategy
        +create(FunnelStrategy~T~ funnel) BloomFilterBuilder~T~$
        +build() BloomFilter~T~
    }

    class HashingStrategy {
        <<interface>>
        +hash(byte[] data, int k, int m) int[]
    }

    class MurmurHashingStrategy {
        +hash(byte[] data, int k, int m) int[]
    }

    class FunnelStrategy~T~ {
        <<interface>>
        +funnel(T from) byte[]
    }

    class StringFunnelStrategy {
        +funnel(String from) byte[]
    }

    class BloomFilterConfig {
        -int expectedElements
        -double targetFpr
        -int bitArraySize
        -int kHashFunctions
        +calculateBitArraySize() int
        +calculateKHashFunctions() int
    }

    BloomFilter <|.. DefaultBloomFilter : implements
    HashingStrategy <|.. MurmurHashingStrategy : implements
    FunnelStrategy <|.. StringFunnelStrategy : implements

    BloomFilterBuilder --> DefaultBloomFilter : builds
    BloomFilterBuilder --> BloomFilterConfig : uses to calculate m & k

    DefaultBloomFilter --> HashingStrategy : delegates hashing
    DefaultBloomFilter --> FunnelStrategy : delegates serialization

Runtime Sequence Diagram

sequenceDiagram
    actor User
    participant ConsoleUI
    participant DefaultBloomFilter
    participant StringFunnelStrategy
    participant MurmurHashingStrategy
    participant BitSet

    User->>ConsoleUI: Inputs "1" (Add Key)
    ConsoleUI->>DefaultBloomFilter: addKey("key_123")

    activate DefaultBloomFilter
    DefaultBloomFilter->>DefaultBloomFilter: keysAdded++

    Note over DefaultBloomFilter,StringFunnelStrategy: Step 1: Serialize Object to Bytes
    DefaultBloomFilter->>StringFunnelStrategy: funnel("key_123")
    activate StringFunnelStrategy
    StringFunnelStrategy-->>DefaultBloomFilter: byte[] [0x6B, 0x65, ...]
    deactivate StringFunnelStrategy

    Note over DefaultBloomFilter,MurmurHashingStrategy: Step 2: Generate k Hash Indices
    DefaultBloomFilter->>MurmurHashingStrategy: hash(byte[], kHashFunctions, bitArraySize)
    activate MurmurHashingStrategy
    MurmurHashingStrategy->>MurmurHashingStrategy: Hashing.murmur3_128()
    MurmurHashingStrategy->>MurmurHashingStrategy: Double Hashing Math
    MurmurHashingStrategy-->>DefaultBloomFilter: int[] [1405, 892, 45]
    deactivate MurmurHashingStrategy

    Note over DefaultBloomFilter,BitSet: Step 3: Flip the Bits
    loop For each index in int[]
        DefaultBloomFilter->>BitSet: set(index)
    end

    DefaultBloomFilter-->>ConsoleUI: return
    deactivate DefaultBloomFilter

    ConsoleUI->>ConsoleUI: calculate FPR & renderFrame()
    ConsoleUI-->>User: Visualizes updated Bit Array & FPR
